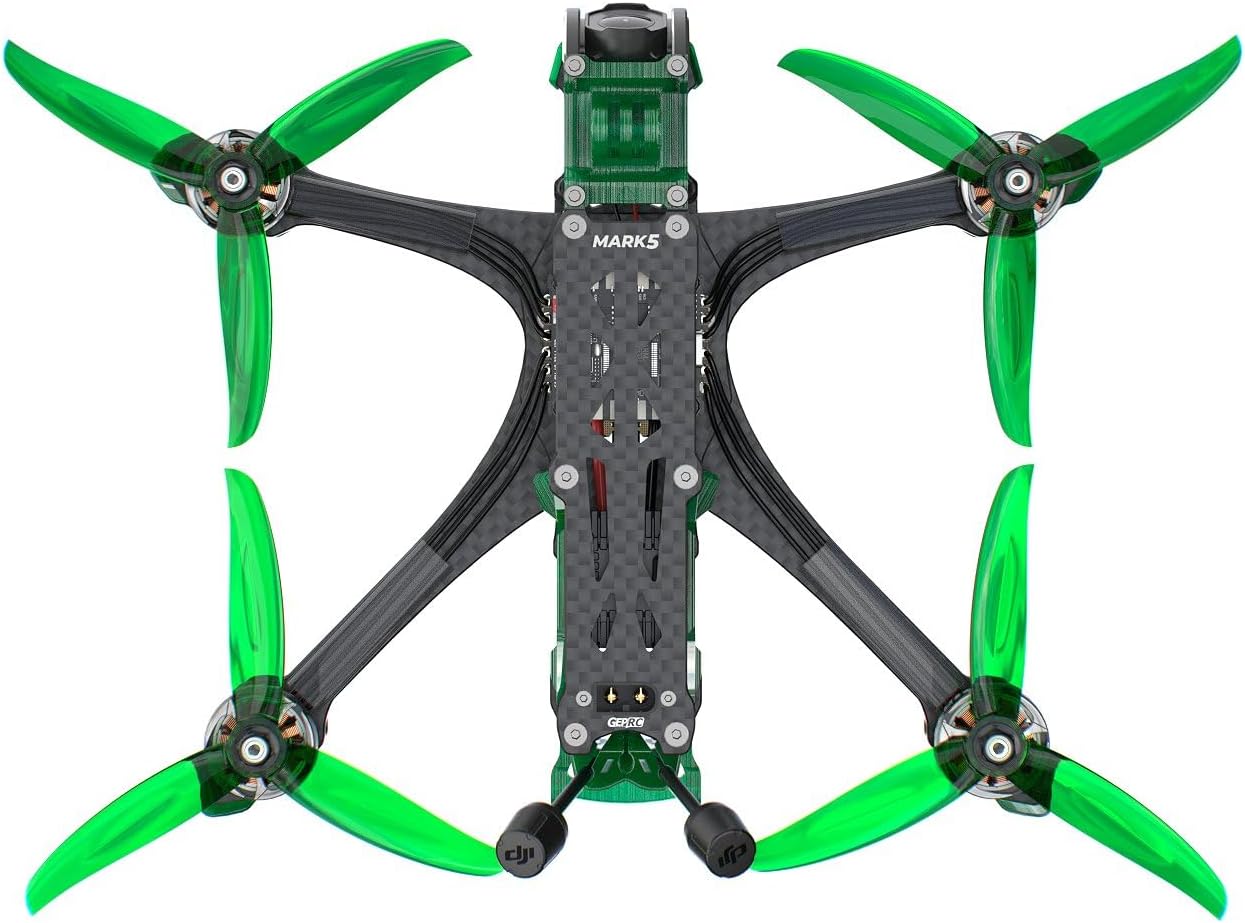

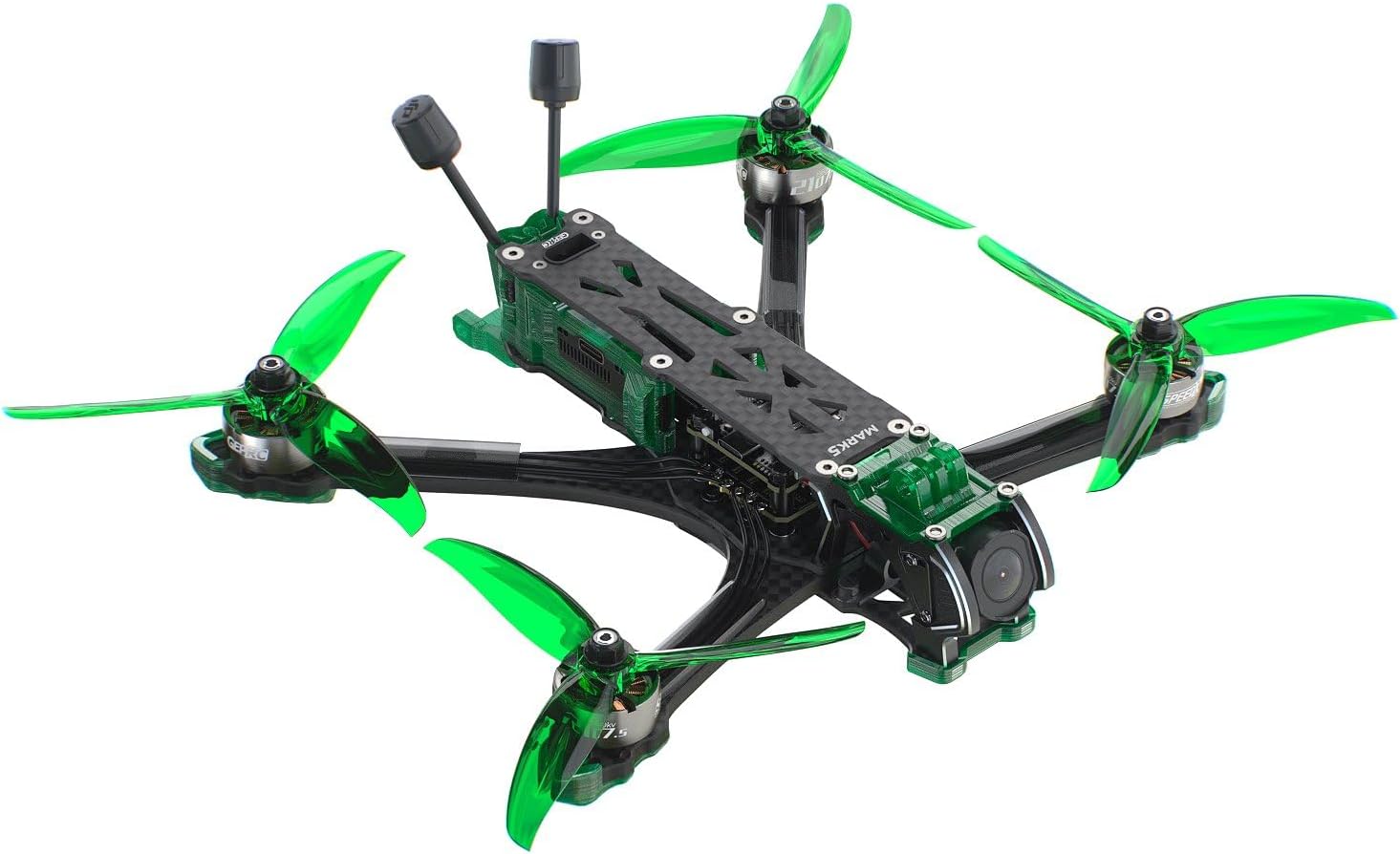

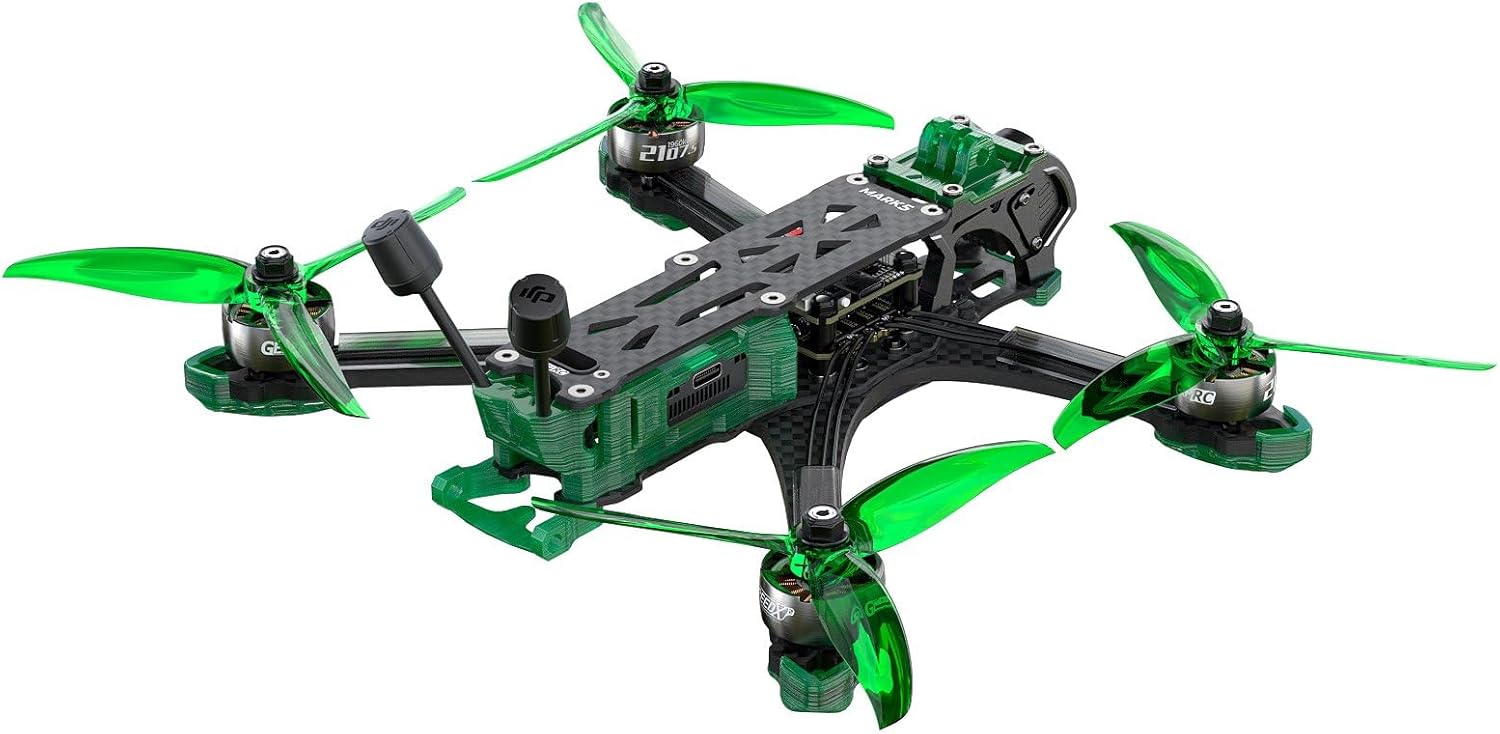

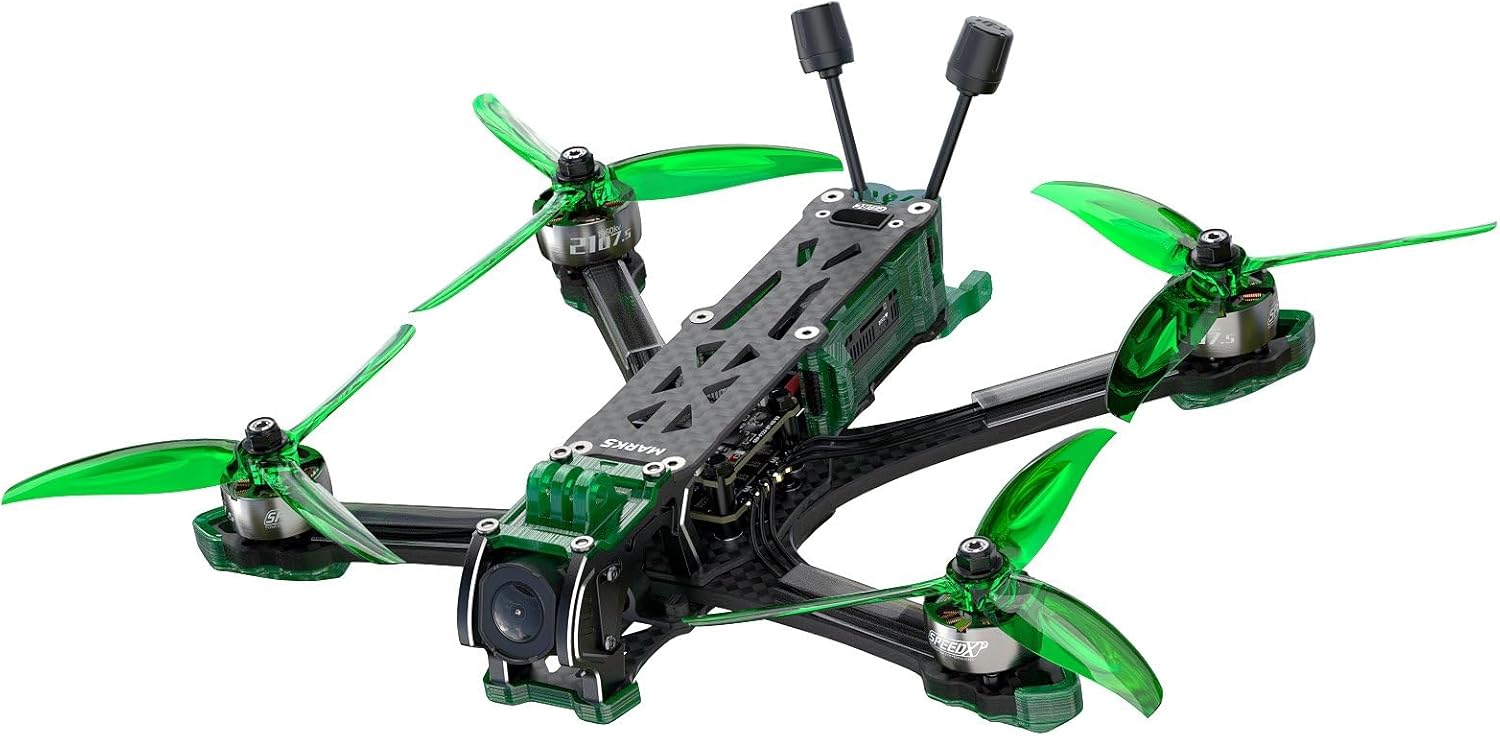

GEPRC MARK5 O4 Pro DC FPV Drone (6S PNP with GPS)

Price: $648.99
(as of Aug 24, 2025 13:36:54 UTC – Details)

Specifications

DC Version

• Model: MARK5 O4 Pro DC FPV
• Wheelbase: 230mm
• VTX: O4 Air Unit Pro VTX module
• Camera: O4 Air Unit Pro camera module
• Antenna: O4 Air Unit Pro Antenna
• Motor: SPEEDX2 2107.5 1960KV
• Prop: Gemfan 5136
• FC: GEP-F722-BT-HD V3
• MCU: STM32F722
• IMU: ICM42688-P(SPI)
• OSD: BetaFlight OSD w / AT7456E chip
• ESC: GEP-BL32 50A 96K 4IN1 ESC
• Power Connector: XT60EW-M
• Optional GPS：GEP-M10 GPS
• Receiver: PNP / ELRS 2.4G / TBS NanoRX
• Recommended battery: LiPo 6S 1050mAh-1550mAh
• Printouts Color: emerald green
• Weight: 433.4g ± 5g
• Flight Time: 6-8 minutes（Based on slow cruising tests, the actual may vary due to product differences, firmware version, flying style, and environment. For reference only）

Includes

1 x GEPRC MARK5 O4 Pro FPV
1 x Gemfan 5136（2CW 2CCW）
1 x 15*250mm strap
2 x 20*250mm straps
2 x Battery anti-slip pads
1 x 3D printouts pack
1 x Spare screw pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x L-shaped screwdriver 3mm
1 x M8 wrench
Spare Screws Included:
1 x M5 Flange Nylon Knurled Nut
2 x M2 Stainless Steel Press-fit Nuts
1 x M5*25 Stainless Steel Button Head Hex Screw
4 x M3*10 Button Head Hex Screws
4 x M3*8 Button Head Hex Screws
2 x M3*8 Countersunk Hex Screws
2 x M3*5 Countersunk Hex Screws
Integrated O4 Air Unit Pro features a 1/1.3-inch sensor for crisp 4K/120fps recording and real-time 1080P/100fps transmission. Optimized for sharp visuals and improved performance in dim lighting.
Aluminum camera mount with silicone damping absorbs vibrations and reduces resonance, ensuring smooth footage during high-speed maneuvers.
TAKER F722 BT 50A flight controller and 2107.5 1960KV motors deliver precise thrust and stability. Bluetooth-enabled mobile app simplifies real-time tuning.
Quick-release arms allow tool-free swaps in seconds. Dedicated compartments for capacitor and buzzer reduce wiring clutter and enhance reliability.
Choose between DC or wide-X frame designs to match agility or stability preferences. Reinforced damping protects internal components from vibration damage.
